| DEBRIS HOPPER | |
|---|---|
| Capacity | 2.7 cubic yards/ 2.06 cubic meters |
| Construction | Stainless Steel |
| Exterior Finish | Vinyl Wrap |
| Interior Finish | Stainless Steel |
| Suction Tube Diameter | 10” |
| Suction Tube Material | Replaceable, Polyethylene |
| Inspection Doors | 2,(1 on each side) |
| Inspection Door Opening | 9.75” x 20” |

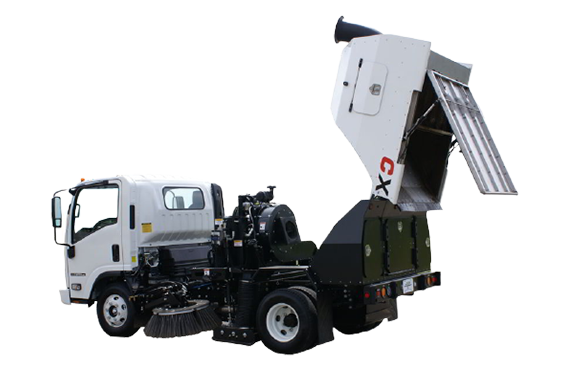

| Dump Type | Hydraulic |
| Dump Cylinders | 2 @ 3” x 20” |
| Dump Height | 70” |
| Dump Controls | Electric In-cab |
| Separator Screen Construction | Stainless Steel |
| Separator Screen Maintenance | Hydraulic access door |
| AUXILIARY ENGINE | |
|---|---|
| Type/fuel | 4 Cycle / Gas EFI |
| Make | Command PRO by Kohler |
| Model | ECH740 Air Cooled |
| Number of Cylinders | 2 |
| Displacement | 747 cc |
| Bore | 3.3 in/83 mm |
| Stroke | 2.7 in/69 mm |
| Brake Horsepower | 25 HP/18.6 KW |
| Oil Filter | Spin on |
| Air Filter | 2 pc / Dry type w/ safety element |
| Oil Cooler | Included |
| IMPELLER | |
|---|---|
| Diameter | 20” |
| Type | 8 blade backward inclined high pressure |
| Drive | Multi-groove banded belt |
| Construction | 2 Abrasion resisting grades of keyed welded steel |
| Mounting | 2 Sealed & relubable ball bearings |
| Housing Construction | Welded steel |
| Housing Type | Unobstructed for open airflow |
| Liner | Replaceable corded rubber |
| Liner Bolts | Coated for increased abrasion resistance |
| HYDRAULIC SYSTEM | |
|---|---|
| Pump Type | Fixed displacement gear |
| Drive | Belt |
| Pump Capacity | 5 GPM |
| System Filtration | 10 micron |
| Reservoir Capacity | 10 gallons |
| Hydraulic Back-up System (optional) | |
|---|---|
| Pump Type | 12 volt DC |
| Controls | In cab |
| Purpos | Powers all hydraulic functions without auxiliary engine |
| DUST SUPPRESSION | |
|---|---|
| Water Capacity | 50 gallons |
| Tank Construction | Aluminum |
| Pump Type | 12 volt, Diaphram |
| Controls | In cab |
| CURB BROOM | |
|---|---|
| Controls | Electric in-cab |
| Diameter | 39” |
| Drive | Direct - Hydraulic motor |
| Tilt | Electric in-cab |
| Suspension | Spring |
| Bristle Type | Vertical digger |
| Bristle Material | Oil tempered steel wire |
| Bristle Length | 26” |
| SWEEPING HOOD | |
|---|---|
| Type | Blast - Suction / Right to Left |
| Towing Type | 2 Trailing arms |
| Suspension | 4 Springs |
| Up Storage | Rubber stops |
| Type | 2 piece |
| Material | Welded steel |
| Pressure Tube | 10” Diameter AR steel |
| Suction Tube | 10” Diameter AR steel |
| Hood Widths | Standard 82”, Optional 90” |
| Flaps | 3 Total |
| Front | 1/4” x 6.5” non-corded rubber |
| Middle | 3/8” x 6” non-corded rubber |
| Rear | 1/2”x 6” non-corded rubber |
| Skids | Single row |
| Skid Material | Steel with virgin Tungsten Carbide |
| “HOODS UP”’ (Anti-plowing) | Independent hydraulics |
| “HOODS UP” Controls | Electric in-cab |
| CONTROLS | |
|---|---|
| Type | Electric |
| Location | In-cab |
| Circuit Breakers | Individually resettable |
| Switches | Rocker |
| Monitoring | Hour meter |
| STANDARD CHASSIS | |
|---|---|
| Make | Isuzu |
| Model | NPR Gas |
| Capacity / GVWR | 12,000 lbs |
| PROPULSION ENGINE | |
|---|---|
| Type/Fuel | 4 Cycle / Gas |
| Model | GMPT L96 (Gen IV) V8 Vortec |
| Cylinders | 8 |
| Displacement | 6.0 L / 365 cid |
| Horsepower | 297 hp @ 4,300 rpm |
| Starter | 12v |
| Alternator | 145 amp |
| Battery | 12v - 750 CCA |
| Oil Filter | Spin-on |
| Air Filter | Dry-type |
| TRANSMISSION | |
|---|---|
| Make | 6L90 6-speed double overdrive |
| Type | Automatic |
| Speeds | 6 Forward, 1 Reverse |
| TIRES AND WHEELS | |
|---|---|
| Configuration | 2 Front, 4 Rear |
| Tire Type | Tubeless / Steel belted radials |
| Tire Size | 215/85R16E |
| Wheels | Steel disc / one piece |
| BRAKES | |
|---|---|
| Type | Front disc / Rear drum |
| Power | Vacuum/Hydraulic with 4-channel ABS |
| Parking | Mechanical / Trans mounted |
| CAB | |
|---|---|
| Type | Cab over Engine |
| Engine Access | Manual tilt |
| Construction | Steel |
| Air Conditioning | Standard |
| Radio | Standard |
| Windows | Electric |
| Door Locks | Electric |
| Steering | Integral Power |

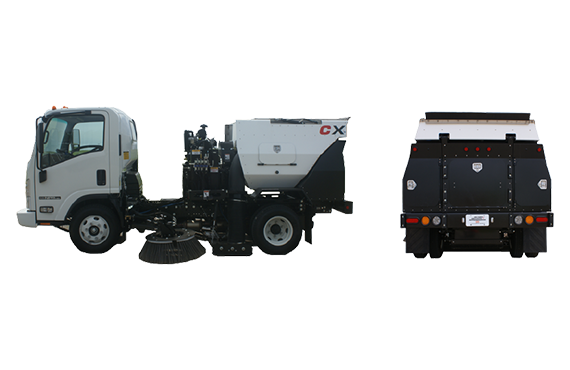

| WEIGHTS AND DIMENSIONS | |
|---|---|
| Total Empty Weight | 9,900 lbs |
| Chassis Only Curb Weight | 5,022 lbs |
| Wheel Base | 109” |
| Turning Diameter (curb to curb) | 33’ 6” |
| Overall Length | 214” |
| Overall Height | 92” |
| Overall Width | 92” |
| Sweeping Width (hood only) | 82” or 90” |
| Sweeping Width (hood and left broom) | 101” |
| Sweeping Width (hood and dual brooms) | 116” |
Front Bumper Spray Bar
For addition dust suppression, the front mounted spray bar provides 7 brass spray nozzles located under the chassis front bumper to wet the entire sweeping surface. Includes separate 12 volt supply pump and in-cab control.
Hopper Shaker
Vibco 12V hopper shaker / vibrator is mounted on the bottom of debris hopper to assist when dumping sweeper contents. This option is extremely beneficial if sweeping heavy construction material and street sweepings.
Hopper Drain System
The hopper drain system enables the liquid contents inside the hopper to be removed so the operator can continue sweeping. Includes a large separator screen to prevent blockage and a drain hose for directing drainage contents.
Heavy Duty Front Bumper
Protect your sweeper from shopping carts and other minor obstacles with this heavy-duty steel bumper cover. Bolts in front of existing chassis bumper. A lighted option is also available.
LED Illuminator Bumper
Protect your sweeper from shopping carts and other minor obstacles with this heavy-duty steel bumper cover. This bumper provides over 17,000 lumens of LED lighting. Includes amber flashing corner lights and a rear facing light to illuminate the pick-up head area. Bolts in front of existing chassis bumper.
Detail Hose 6 inch
6 inch diameter X 10 foot length suction hose allows for cleaning remote areas and shallow catch basins. Mounts to hopper inspection door and can be positioned on either side of sweeper. Includes block off plate.
Spare Parts Packages
Let us customize a parts package so you have critical wear parts on hand to avoid downtime.
LED Amber Light Bar – Medium
Super bright Amber warning light to ensure your sweeper is visible when operating day or night. This 27 inch LED Light Bar provides 56 3w MaxGen LEDs with a 100,000 hour lifespan. Capable of 30 available flash patterns.
LED Amber Light Bar – Large
Super bright Amber warning light to ensure your sweeper is visible when operating day or night. This 47 inch LED Light Bar provides 88 3w MaxGen LEDs with a 100,000 hour lifespan. Capable of 33 available flash patterns.
Custom Vinyl Wrap
These large tool boxes provide ample storage space for all your sweeping related necessities. Constructed from welded Aluminum for strength and corrosion resistance. Three lockable sealed doors provide easy access and security. Interior has LED light for night visibility.
