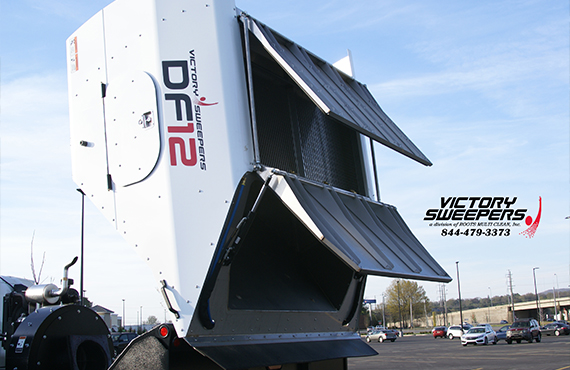

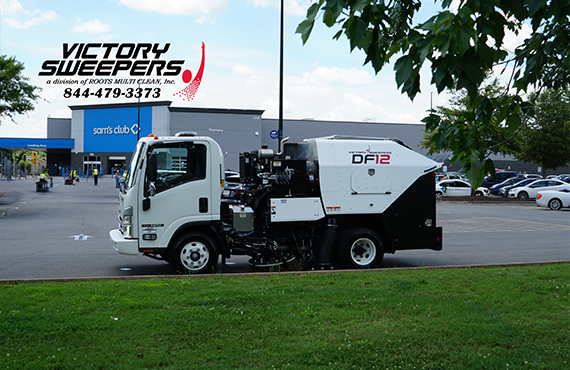

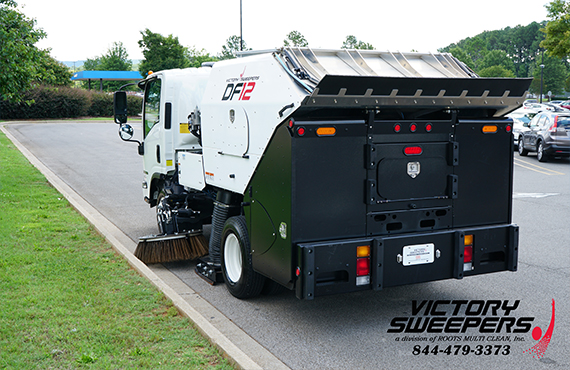

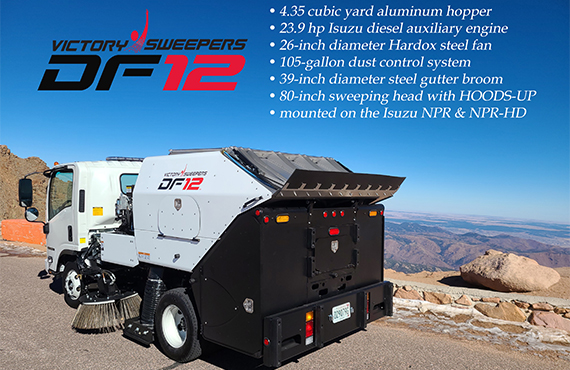

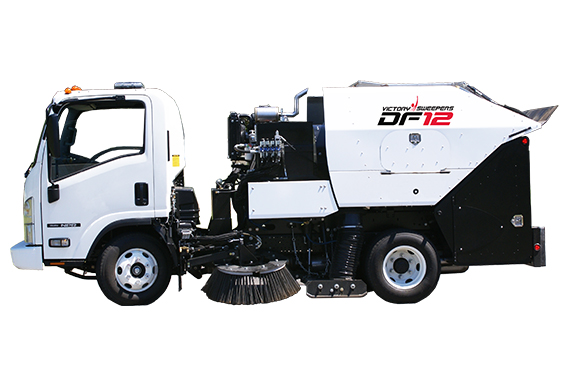

| DEBRIS HOPPER | |
|---|---|
| Capacity | 4.35 cubic yards / 3.32 cubic meters |
| Construction | Aluminum Standard, Stainless Steel Optional |
| Exterior Finish | Vinyl Wrap |
| Interior Finish | Aluminum |
| Suction Tube Diameter | 10” |
| Suction Tube Material | Replaceable, Polyethylene |
| Engine Shroud (Optional) | Stainless Steel |
| Inspection Doors | 1 on each side |
| Inspection Door Opening | 13.7” x 26” |
| Dump Type | Hydraulic |
| Dump Cylinders | 2 @ 4” x 16” |
| Dump Height | 70” |
| Dump Controls | Electric In-cab |
| Separator Screen Construction | 2 pc Stainless Steel |
| Separator Screen Maintenance | Hydraulic assist access door |
| AUXILIARY ENGINE | |
|---|---|
| Type/Fuel | 4 Cycle / Naturally Aspirated Diesel |
| Make | Isuzu |
| Model | 3CH1 |
| No. of Cylinders | 3 |
| Displacement | 79.3 cu in / 1.3 litres |
| Brake Horsepower | 23.9 BHP / 17.8 KW |
| Oil Filter | Spin-on |
| Air Filter | 2 pc / Dry type with safety element |
| IMPELLER | |
|---|---|
| Impeller Diameter | 26” |
| Impeller Type | 10 blade, backward inclined, high pressure |
| Impeller Drive | 3V 4-Groove banded belt |
| Impeller Construction | Keyed, welded steel (2 abrasion-resisting grades) |
| Mounting | 2 Sealed & relubable ball bearings |
| Housing Construction | Welded steel |
| Housing Type | Unobstructed for open airflow |
| Liner | Replaceable corded rubber |
| Liner Bolts | Coated for abrasion resistance |
| HYDRAULIC SYSTEM | |
|---|---|
| Pump Type | Fixed displacement gear |
| Drive | Direct |
| Pump Capacity | 5 GPM |
| System Filtration | 10 micron |
| Reservoir Capacity | 13 gallons |
| HYDRAULIC BACKUP SYSTEM (Optional) | |
|---|---|
| Pump | 12 volt DC |
| Hydraulic Backup Controls | In-cab |
| Purpose of Backup | Powers all hydraulic functions without aux. engine |
| DUST SUPPRESSION | |
|---|---|
| Water Capacity | 105 gallons |
| Tank Construction | Polyethylene |
| Water Pump Type | 12 volt Diaphragm |
| Water Pump Controls | In-cab |
| CURB BROOM | |
|---|---|
| Controls | Electric in-cab |
| Diameter | 39” |
| Drive | Direct - Hydraulic motor |
| Tilt | Electric in-cab |
| Suspension | Spring |
| Bristle Type | Vertical digger |
| Bristle Material | Oil tempered steel wire |
| Bristle Length | 26” |
| SWEEPING HOOD | |
|---|---|
| Type | Blast - Suction / Right to Left |
| Towing Type | 2 Trailing arms |
| Suspension | 4 Springs |
| Up Storage | Rubber stops |
| Hood Construction | 2-piece, Welded steel |
| Pressure Tube | 10” Diameter AR steel |
| Suction Tube | 10” Diameter AR steel |
| Hood Widths | Standard 82”, Optional 90” |
| Flaps | 3 Total |
| Skids | Single row adjustable reversible |
| Skid Material | Steel with virgin Tungsten Carbide |
| Direction | Forward and reverse |
| “HOODS UP” Feature | Independent hydraulics |
| “HOODS UP” Controls | Electric in-cab |
| CONTROLS | |
|---|---|
| Type | Electric |
| Location | In-cab |
| Circuit Breakers | Individually resettable |
| Switches | Rocker |
| STANDARD CHASSIS | |
|---|---|
| Make | Isuzu |
| Model | NPR Gas |
| GVWR / Capacity | 12,000 lbs |
| PROPULSION ENGINE | |
|---|---|
| Type/Fuel | 4 Cycle / Gas |
| Model | GMPT L8T (GEN V) |
| Cylinders | 8 |
| Displacement | 6.6 L / 400 cid |
| Horsepower | 350 hp @ 4,500 rpm |
| Torque | 425 lb-ft @ 3,800 rpm |
| Starter | 12v |
| Alternator | 170 amp |
| Battery | 12v – 750 CCA |
| Oil Filter | Spin-on |
| Air Filter | Dry-type |
| TRANSMISSION | |
|---|---|
| Make | 6L90 Hydra-Matic |
| Type | Automatic |
| Speeds | 6 Forward, 1 Reverse |
| TIRES AND WHEELS | |
|---|---|
| Configuration | 2 Front, 4 Rear |
| Tire Type | Tubeless / Steel belted radials |
| Tire Size | 215/85R16E |
| Wheels | Steel disc / One piece |
| BRAKES | |
|---|---|
| Type | Front Disc / Rear Drum |
| Power | Vacuum/Hydraulic with 4-channel ABS |
| Parking | Mechanical / Transmission-mounted |
| CAB | |
|---|---|
| Type | Cab Over Engine |
| Engine Access | Manual Tilt |
| Construction | Steel |
| Air Conditioning | Standard |
| Radio | Standard |
| Windows | Electric |
| Door Locks | Electric |
| Steering | Integral Power |
| WEIGHTS AND DIMENSIONS | |
|---|---|
| Total Empty Weight | 9,800 lbs |
| Chassis Only Curb Weight | 5,204 lbs |
| Wheelbase | 109” |
| Turning Diameter | 31’ 5” |
| Overall Length | 214” |
| Overall Height | 92” |
| Overall Width | 92” |
| Sweeping Width (hood only) | 82” or 90” |
| Sweeping Width (hood + left broom) | 101” |
| Sweeping Width (dual brooms) | 116” |
| FUEL TANKS | |
|---|---|
| Chassis (Gasoline) | 38.6 gallons |
| Auxiliary Engine (Diesel) | 20 gallons |
