GXA

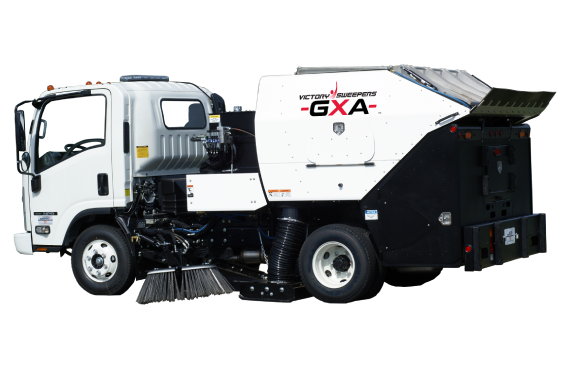

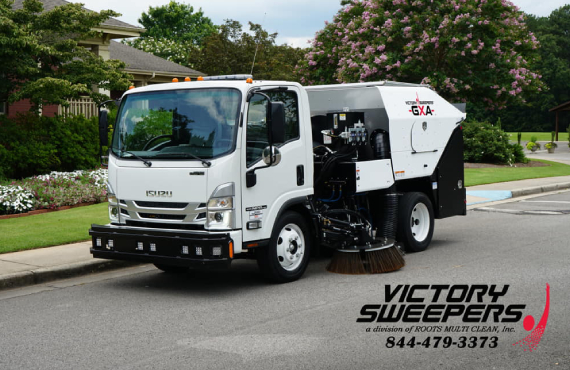

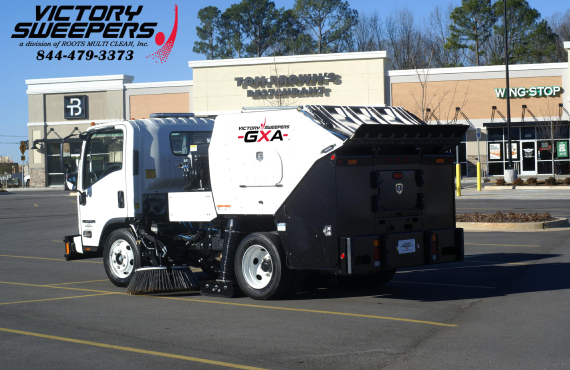

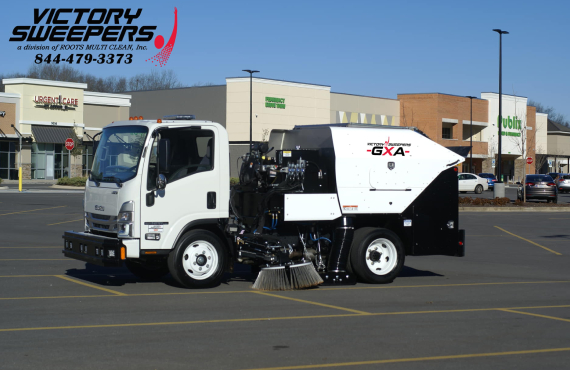

The Victory Model GXA is a powerful gasoline powered parking lot surface sweeper. The GXA is similar to the Victory Model GX, but is equipped with an aluminum debris hopper allowing it to be mounted on the lighter 12,000 lb gvwr Isuzu Model NPR gas chassis.

The GXA utilizes a 38-hp gasoline Kohler auxiliary engine coupled with our 10-blade backward inclined 28-inch diameter blower fan to provide exceptional power. The GXA enables the operator to sweep typical parking lot debris at low RPM for ultra-quiet operation and cost, but is also capable of heavy debris sweeping such as that required for construction cleanup. This versatility makes the GXA an excellent choice for multi-purpose applications allowing your sweeping company to perform for a wider range of clients.

The GXA features a large 4.35 cubic-yard ALUMINUM debris hopper with a 70-inch dump height. Large inspection doors are provided on each side and dual opening top doors allow easy access for cleaning. A left side mounted 39-inch diameter gutter broom with in-cab tilt is standard. A full- width blast and suction sweeping head capable of reverse sweep is provided and includes the Victory exclusive HOODS-UP feature that allows the operator to raise the front of the sweeping head for bulk trash, leaves and large debris sweeping. Carbide drag-shoes, litter trap, safety chains and rubber head stops are provided. The 105-gallon dust control system features a 12-volt diaphragm pump, filter, heavy-duty push lock hoses and brass spray nozzles position at the broom(s), head and inside the hopper. A centrifugal self-cleaning dust separator is located inside the hopper to remove fine dust particle prior to entering the HARDOX Steel blower fan which is guaranteed for 5 years or 5000 hours against wear-out. A rubber lined blower housing is provided that features an in-cab leaf/light debris diverter system. The hydraulic system is belt driven from the auxiliary engine and includes a 13-gallon reservoir, 10-micron spin-on filter, manual over-ride directional valves (labeled), pressure ports w/gauge and optional 12-volt hydraulic backup system. A large central control console is provided with heavy-duty rocker style switches, gauges, resettable circuit protection and padded arm rest. Heavy-duty 3m vinyl wrap is used on hopper exterior to ensure your sweeper looks good for years. The GXA is mounted on the 109-inch wheelbase 12,000 lb GVWR Isuzu NPR gasoline chassis.

Brochure
Video
Request a Quote

DEBRIS HOPPER

DEBRIS HOPPER
Capacity	4.35 cu yd / 3.32 cu m
Construction	Aluminum Optional
Exterior Finish	Vinyl Wrap
Interior Finish	Aluminum
Suction Tube Diameter	10”
Suction Tube Material	Replaceable Polyethylene
Inspection Doors	1 on each side
Inspection Door Opening	13.7” x 26”
Dump Type	Hydraulic
Dump Cylinders	2 @ 4” x 16”

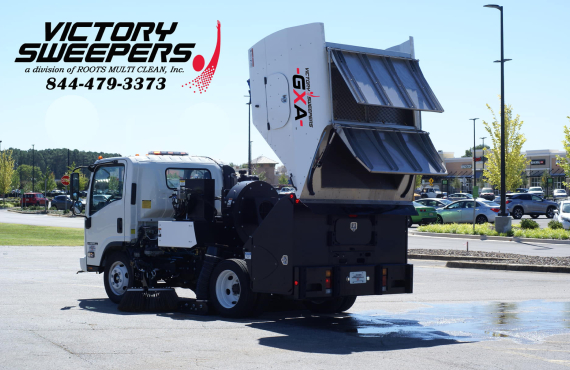

Dump Height	70”
Dump Controls	Electric In-cab
Separator Screen Construction	2 pc Stainless Steel
Separator Screen Maintenance	Hydraulic assist access door

AUXILIARY ENGINE

AUXILIARY ENGINE
Type / Fuel	4 Cycle / Gas
Make	Kohler
Model	ECH980
Number of Cylinders	2
Displacement	999 cc
Bore	90 mm
Stroke	78.5 mm
Brake Horsepower	38 BHP / 28.3 KW
Oil Filter	Spin-on
Air Filter	2 pc / Dry type with safety element
Safety Shutdown	Oil Pressure

IMPELLER

IMPELLER
Diameter	28”
Type	10 blade, backward inclined, high pressure
Maximum Speed	2800 RPM
Drive	4-Groove banded belt
Construction	Abrasion-resistant keyed welded steel (2 grades)
Mounting	2 Sealed & relubable ball bearings
Housing Construction	Welded Steel
Housing Type	Unobstructed for open airflow
Liner	Replaceable corded rubber
Liner Bolts	Coated for abrasion resistance

HYDRAULIC SYSTEM

HYDRAULIC SYSTEM
Pump Type	Fixed displacement gear
Drive	Belt
Pump Capacity	5 GPM
System Filtration	10 micron
Reservoir Capacity	13 gallons

Hydraulic Backup System (Optional)
Pump Type	12 volt DC
Controls	In-cab
Purpose	Powers hydraulic functions without aux. engine

DUST SUPPRESSION

DUST SUPPRESSION
Water Capacity	105 gallons
Tank Construction	Polyethylene
Pump Type	12 volt, Diaphragm
Controls	In-cab

CURB BROOM

CURB BROOM
Controls	Electric in-cab
Diameter	39”
Drive	Direct - Hydraulic motor
Tilt	Electric in-cab
Suspension	Spring
Bristle Type	Vertical digger
Bristle Material	Oil tempered steel wire
Bristle Length	26”

SWEEPING HOOD

SWEEPING HOOD
Type	Blast - Suction / Right to Left
Towing Type	2 Trailing arms
Suspension	4 Springs
Up Storage	Rubber stops
Hood Type	2-piece
Material	Welded steel
Pressure Tube	10” Diameter AR steel
Suction Tube	10” Diameter AR steel
Hood Widths	Standard 82”, Optional 90”
Flaps	3 Total
Direction	Forward and reverse
Skids	Single row
Skid Material	Steel with virgin Tungsten Carbide
“HOODS UP”	Independent hydraulics
“HOODS UP” Controls	Electric in-cab

CONTROLS

CONTROLS
Type	Electric
Location	In-cab
Circuit Breakers	Individually resettable
Switches	Rocker
Monitoring Gauges	Hour meter

STANDARD CHASSIS

STANDARD CHASSIS
Make	Isuzu
Model	NPR Gas
Capacity / GVWR	12,000 lbs

PROPULSION ENGINE

PROPULSION ENGINE
Type / Fuel	4 Cycle / Gas
Model	GMPT L8T (GEN V)
Cylinders	8
Displacement	6.6 L / 400 cid
Horsepower	350 hp @ 4,500 rpm
Torque	425 lb-ft @ 3,800 rpm
Starter	12v
Alternator	170 amp
Battery	12v - 750 CCA
Oil Filter	Spin-on
Air Filter	Dry-type

TRANSMISSION

TRANSMISSION
Make	6L90 Hydra-Matic 6-speed
Type	Automatic
Speeds	6 Forward, 1 Reverse

TIRES AND WHEELS

TIRES AND WHEELS
Configuration	2 Front, 4 Rear
Tire Type	Tubeless / Steel belted radials
Tire Size	215/85R16E
Wheels	Steel disc / One piece

BRAKES

BRAKES
Type	Front disc / Rear disc
Power	Vacuum/Hydraulic with 4-channel ABS
Parking	Mechanical / Transmission mounted

CAB

CAB
Type	Cab over Engine
Engine Access	Manual tilt
Construction	Steel
Air Conditioning	Standard
Radio	Standard
Windows	Electric
Door Locks	Electric
Steering	Integral Power

WEIGHTS & DIMENSIONS

WEIGHTS & DIMENSIONS
Total Empty Weight	9,500 lbs
Chassis Only Curb Weight	5,193 lbs
Wheel Base	109”
Turning Diameter	31’ 5”
Overall Length	214”
Overall Height	92”
Overall Width	92”
Sweeping Width (hood only)	82” or 90”
Sweeping Width (hood and left broom)	101”
Sweeping Width (hood and dual brooms)	116”
